Technical Specs
Nintendo Switch – OLED Model
Nintendo Switch
Nintendo Switch Lite
Nintendo Switch dock with LAN port
Nintendo Switch dock
Joy‑Con controllers
Joy‑Con Strap
Joy‑Con Grip

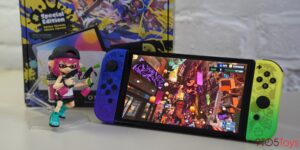

Nintendo Switch™ – OLED Model
Size
4 inches high, 9.5 inches long, and 0.55 inches deep (with Joy-Con attached)
*The depth from the tip of the analog sticks to the tip of the ZL/ZR buttons is 1.12 inches
Weight
Approximately .71 lbs
(Approximately .93 lbs with Joy-Con controllers attached)
Screen
Multi-touch capacitive touch screen / 7.0 inch OLED screen / 1280×720
CPU/GPU
NVIDIA Custom Tegra processor
Storage
64 GB
Users can easily expand storage space using microSDHC or microSDXC cards up to 2TB (sold separately).
Wireless
Wi-Fi (IEEE 802.11 a/b/g/n/ac compliant) / Bluetooth 4.1
Video output
Up to 1080p via HDMI in TV mode
Up to 720p via built-in screen in Tabletop mode and Handheld modes
Audio output
Compatible with 5.1ch Linear PCM output
Output via HDMI connector in TV mode
Speakers
Stereo
Buttons
Power button / Volume button
USB connector
USB Type-C
Used for charging or for connecting to the Nintendo Switch dock.
Headphone/mic jack
3.5mm 4-pole stereo (CTIA standard)
Game card slot
Nintendo Switch game cards
microSD card slot
Compatible with microSD, microSDHC, and microSDXC memory cards
*Once the microSDXC card is inserted, a system update will be necessary. An internet connection is required to perform this system update.
Sensor
Accelerometer, gyroscope, and brightness sensor
Operating environment
41-95 degrees F / 20-80% humidity
Internal battery
Lithium-ion battery / 4310mAh
Battery life
Approximately 4.5 – 9 hours
The battery life will depend on the games you play. For instance, the battery will last approximately 5.5 hours for The Legend of Zelda: Breath of the Wild.
Power Consumption
TV mode
Playing a game: Approx. 6W
Watching a video: Approx. 5W
On the main menu: Approx. 3W
Sleep mode*: Approx. 0.3W
Sleep mode**: Approx. 2.2W
Power off: Approx. 0.3W
Handheld & Tabletop modes
Playing a game: Approx. 4W
Watching a video: Approx. 3W
On the main menu: Approx. 2W
Sleep mode: Approx. 0.03W
Power off: Less than 0.01W
Estimated annual energy consumption***: Approx. 6 kWh* / Approx. 21 kWh**
*Wired internet connection setting is off
**Wired internet connection setting is on
***The estimated annual energy consumption of a console when used for gaming an average two hours per day for a whole year.
Power consumption varies depending on software and usage conditions. Values have been rounded off to the nearest full value. There also may be some statistical variations on the energy consumption values displayed. The values could also change depending on the usage environment and conditions.
Charging time
Approximately 3 hours
*When charging while the hardware is in sleep mode
Nintendo Switch™ console (HAC-001(-01))
Size
Approximately 4 inches high, 9.4 inches long, and 0.55 inches deep (with Joy-Con attached)
*The depth from the tip of the analog sticks to the tip of the ZL/ZR buttons is 1.12 inches
Weight
Approximately .66 lbs
(Approximately .88 lbs when Joy-Con controllers are attached)
Screen
Multi-touch capacitive touch screen / 6.2-inch LCD Screen / 1280 x 720
CPU/GPU
NVIDIA Custom Tegra processor
Storage
32 GB of internal storage, a portion of which is reserved for use by the system. Users can easily expand storage space using microSDHC or microSDXC cards up to 2TB (sold separately).
Wireless
Wi-Fi (IEEE 802.11 a/b/g/n/ac)(*)
Bluetooth 4.1
(*In TV mode, Nintendo Switch systems can be connected with a wired LAN adapter – sold separately)
Video output
Up to 1080p via HDMI in TV mode
Up to 720p via built-in screen in tabletop mode and handheld mode
Audio output
Compatible with 5.1ch Linear PCM output
Output via HDMI connector in TV mode
Speakers
Stereo
Buttons
Power button / Volume button
USB connector
USB Type-C
Used for charging or for connecting to the Nintendo Switch dock.
Headphone/mic jack
3.5mm 4-pole stereo (CTIA standard)
Game card slot
Nintendo Switch game cards
microSD card slot
Compatible with microSD, microSDHC, and microSDXC memory cards *Once the microSDXC card is inserted, a system update will be necessary. An Internet connection is required to perform this system update.
Sensor
Accelerometer, gyroscope, and brightness sensor
Operating environment
41-95 degrees F / 20-80% humidity
Internal battery
Lithium-ion battery/4310mAh
Battery life
Approximately 4.5 – 9 hours
*The battery life will depend on the games you play. For instance, the battery will last approximately 5.5 hours for The Legend of Zelda: Breath of the Wild.
Power Consumption
TV mode
Playing a game: Approx. 7W
Watching a video: Approx. 6W
On the main menu: Approx. 3W
Sleep mode: Approx. 0.3W
Power off: Approx. 0.3W
Handheld & Tabletop modes
Playing a game: Approx. 4W
Watching a video: Approx. 3W
On the main menu: Approx. 2W
Sleep mode: Approx. 0.03W
Power off: Less than 0.01W
Estimated annual energy consumption*: Approx. 6 kWh
*The estimated annual energy consumption of a console when used for gaming an average two hours per day for a whole year.
Power consumption varies depending on software and usage conditions. Values have been rounded off to the nearest full value. There also may be some statistical variations on the energy consumption values displayed. The values could also change depending on the usage environment and conditions.
Charging time
Approximately 3 hours
*When charging while the hardware is in sleep mode

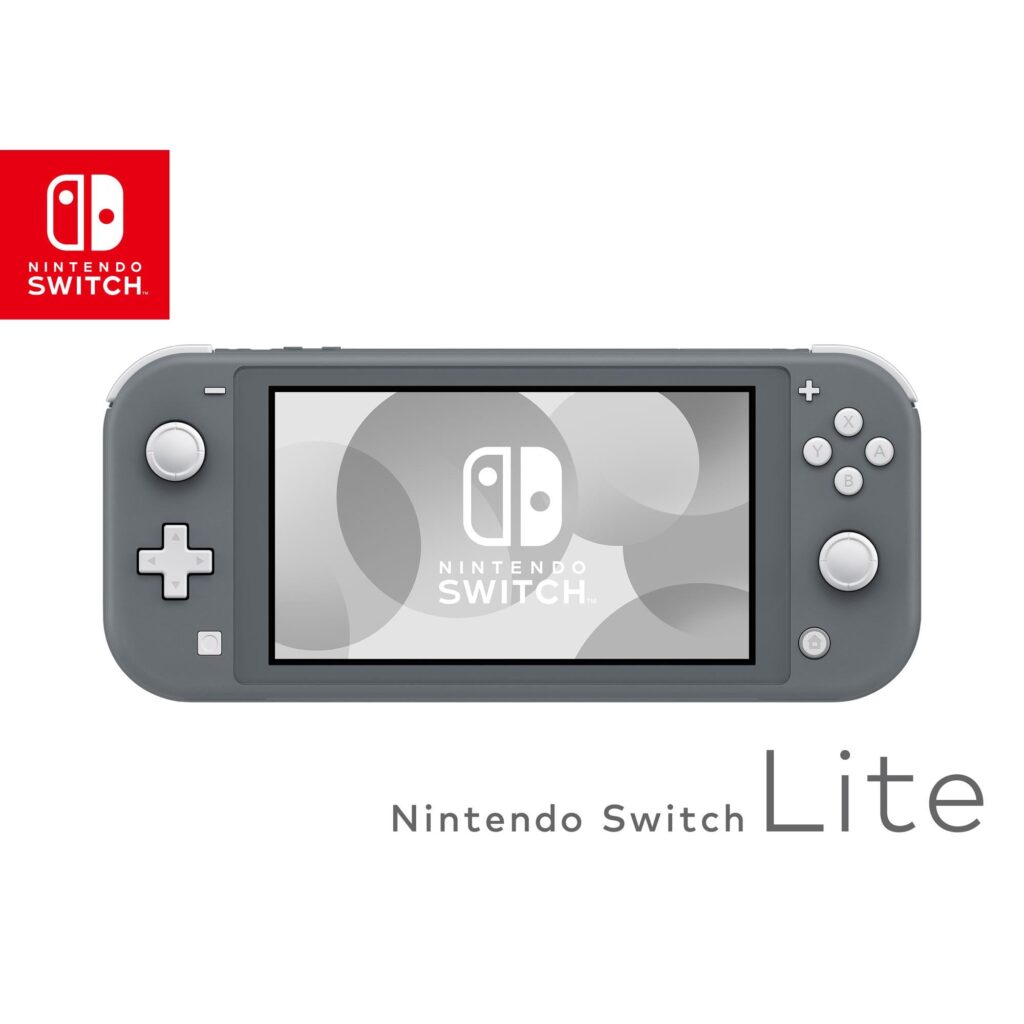

Nintendo Switch Lite (HDH-001)
Size
Approximately 3.6 inches high, 8.2 inches long, and .55 inches deep
*The depth from the tip of the analog sticks to the tip of the ZL/ZR buttons is 1.12 inches
Weight
Approx. .61 lbs
Screen
Capacitive touch screen / 5.5 inch LCD / 1280×720 resolution
CPU/GPU
NVIDIA Custom Tegra processor
Storage
32 GB of internal storage, a portion of which is reserved for use by the system. Users can easily expand storage space using microSDHC or microSDXC cards up to 2TB (sold separately).
Wireless
Wi-Fi (IEEE 802.11 a/b/g/n/ac
Bluetooth 4.1 / NFC (near field communication)
Speakers
Stereo
Buttons
Left Stick
Right Stick
A B X Y L R ZL ZR + – Buttons
+ Control Pad
Power Button
Volume Button
HOME Button
Capture Button
USB connector
USB Type-C
Used for charging only.
Headphone/mic jack
3.5mm 4-pole stereo (CTIA standard)
Game card slot
Nintendo Switch game cards
microSD card slot
Compatible with microSD, microSDHC and microSDXC memory cards.
*Once the microSDXC card is inserted, a system update will be necessary. An Internet connection is required to perform this system update.
Sensor
Accelerometer / gyroscope
Operating environment
41-95 degrees F / 20-80% humidity
Internal battery
Lithium ion battery / battery capacity 3570mAh
Battery life
Model number: HDH-001
Approx. 3.0 to 7.0 hours
*The battery life will depend on the games you play. For instance, the battery will last approximately 4 hours for The Legend of Zelda: Breath of the Wild.
Power Consumption
Handheld & Tabletop modes
Playing a game: Approx. 4W
Watching a video: Approx. 3W
On the main menu: Approx. 2W
Sleep mode: Approx. 0.03W
Power off: Less than 0.01W
Estimated annual energy consumption*: Approx. 3 kWh
*The estimated annual energy consumption of a console when used for gaming an average two hours per day for a whole year.
Values have been rounded off to the nearest full value. There also may be some statistical variations on the energy consumption values displayed. The values could also change depending on the usage environment and conditions.
Charging time
Approximately 3 hours
*When charging while the hardware is in sleep mode
